Warbirds Turning Performance Charts

The Warbirds Turn Performance Charts compare the turning abilities between the Warbird's planes.

Corner Velocity Max G turns were done like this: Load each plane with 10 minutes worth of fuel. Accelerate to Corner Velocity, as found in the G Limits Study. Pull a max-g left turn, time first 180 and 360 degree turns.

The methodology used for the sustained turn rate was: Load each plane with 10 minutes worth of fuel. Turn max-g for 1.5 circles at full power (no wep) to stabilize speed. Hit WEP and time 1 circle. Lower flaps at each degree allowable, timing 1 360 each. Record no flap/full flap speeds, and record best turn (if two flap settings resulted in similar times, the one with the slower speed was used, as this means a smaller turning radius). Record speed of best turn rate.

The instantaneous turn rates model starting a turn fight at a certain speed (corner is usually best), how quickly one can get around. The sustained times are for into the fight, after both planes have burned all excess E, the faster sustained turn rate is going to gain ground on the slower. Instantaneous turn rate helps for tracking a breaking target, and for turning speed into position. E fighters use Instantaneous turn, Turn 'n' Burn fighters use Sustained turn more. BnZ fighters can use these charts to know how much E (approximately) they will burn when turning (against breaking opponent, pulling up from a dive, etc).

The methodology used for the max-g 360 degree (non-corner) turn time was: Load each plane with 10 minutes worth of fuel. Accelerate to 250mph. Time two full max-g 360 degree turns, marking time for 1 circle, then 2. Repeat for 300mph.

Where planes had difficulty to turn at 300mph (or 250mph) the plane was omitted from that speed for that altitude. For altitudes below 15k, a dive from higher altitude to gain the desired speed was performed for planes unable to accelerate in level flight to a particular speed.

One use for instantaneous vs sustained turns is to determine, in a circlefight, who will get first post-merge shot (180 degrees traveled), who will get 2nd post-merge (360 degrees travelled) shot, then who will eventually outturn the other (sustained turn).


Corner Velocity Maximum G Turn, first 180 degrees times/360 degrees times:

Plane 1,000ft 5,000ft 10,000ft 15,000ft   1,000ft 5,000ft 10,000ft 15,000ft
F6F 5.7s 6.3s 6.8s 7.4s   12.6s 13.8s 15.2s 16.8s
F4F 5.5s 5.5s 5.8s 6.3s   12.1s 12.6s 13.3s 14.6s
FM2 5.7s 5.6s 6.2s 6.9s   12.2s 13.2s 13.9s 15.5s
F4U 6.4s 6.7s 7.3s 7.7s   14.8s 15.8s 18.0s 19.1s
A6M2 4.5s 4.7s 5.1s 5.8s   9.9s 10.2s 11.7s 12.7s
A6M3 4.7s 5.1s 5.1s 5.7s   10.4s 11.6s 12.0s 13.7s
A6M5a 4.8s 5.4s 5.4s 5.9s   11.2s 11.9s 13.1s 14.5s
Ki43 4.5s 4.8s 5.2s 5.8s   9.7s 10.3s 11.5s 12.9s
Ki84 5.8s 6.0s 6.9s 7.7s   13.1s 14.1s 15.9s 17.8s
Bf 109E4 6.0s 6.4s 6.7s 7.1s   13.8s 15.4s 15.8s 17.8s
Bf 109F4 6.4s 6.6s 7.4s 7.6s   14.4s 15.5s 17.2s 18.6s
Bf 109G6 6.8s 7.2s 7.7s 8.6s   16.0s 17.4s 18.4s 21.8s
Bf 109G6R6 7.5s 8.5s 9.2s 9.5s   18.0s 19.3s 22.0s 23.0s
Bf 109K4 7.3s 8.0s 9.0s 9.3s   17.1s 18.9s 21.1s 22.7s
Bf 110C4 5.7s 6.0s 6.8s 7.6s   12.3s 13.4s 15.1s 16.8s
Bf 110G2R3 6.2s 6.7s 7.4s 8.2s   13.8s 15.6s 17.1s 18.8s
Fw190A4 7.8s 8.2s 9.5s 9.7s   17.3s 18.1s 20.7s 22.3s
Fw190A8 8.2s 8.6s 9.2s 10.5s   18.3s 19.7s 22.1s 24.3s
Fw190D9 8.1s 9.2s 10.1s 10.5s   18.2s 20.3s 22.6s 24.1s
SpitIa 5.0s 5.3s 6.0s 6.8s   11.3s 11.8s 13.2s 15.2s
SpitV 6.0s 6.2s 6.6s 7.1s   13.1s 13.6s 14.8s 16.1s
SpitIX 6.2s 6.6s 7.2s 8.0s   13.8s 14.6s 16.2s 18.1s
HurriI 4.8s 5.3s 6.2s 6.4s   10.8s 12.1s 13.3s 14.1s
HurriIIc 5.5s 5.9s 6.7s 7.4s   12.1s 13.3s 14.8s 16.4s
P38F 5.6s 6.1s 6.3s 6.9s   12.0s 13.3s 14.3s 15.9s
P38J 6.0s 6.3s 7.0s 7.6s   12.7s 13.4s 14.8s 16.9s
P38L 6.0s 6.6s 7.3s 7.5s   13.1s 13.9s 15.2s 16.9s
P39D 6.1s 6.3s 7.2s 7.9s   13.5s 13.7s 16.0s 17.0s
P40E 5.9s 6.3s 6.5s 7.1s   12.8s 13.6s 14.3s 16.1s
P47D 7.6s 7.7s 8.6s 8.9s   16.7s 17.1s 19.3s 21.8s
P51D 6.6s 7.3s 8.0s 9.0s   15.0s 16.2s 17.6s 19.9s
D3A2 4.6s 4.7s 5.5s 5.5s   10.1s 11.0s 12.4s 13.1s
B5N2 4.8s 5.2s 5.7s 6.1s   9.7s 10.3s 11.4s 12.4s
SBD-5 5.8s 6.1s 6.4s 7.4s   13.3s 14.2s 15.6s 17.9s
Ju88A4 7.3s 7.9s 8.2s 8.5s   16.6s 18.0s 19.8s 21.4s
B25H 8.2s 8.4s 9.1s 9.4s   18.9s 19.3s 20.9s 23.7s
B25J 7.1s 7.3s 8.0s 8.3s   16.8s 17.1s 19.0s 20.3s
B17G 9.0s 8.3s 8.8s 8.9s   18.4s 17.9s 19.4s 20.2s
TBF 6.0s 6.9s 7.4s 7.9s   14.1s 16.6s 18.3s 20.9s



Corner Velocity Maximum G Turn, first 180 degrees times, sorted from best to worst

  1,000ft 5,000ft 10,000ft 15,000ft
#1
#2
#3
#4
#5
#6
#7
#8
#9
#10
#11
#12
#13
#14
#15
#16
#17
#18
#19
#20
#21
#22
#23
#24
#25
#26
#27
#28
#29
#30
#31
#32
#33
#34
#35
#36
#37
#38
#39
4.5 A6M2
4.5 Ki43
4.6 D3A2
4.7 A6M3
4.8 A6M5
4.8 HurriI
4.8 B5N2
5.0 SpitIa
5.5 F4F
5.5 HurriIIc
5.6 P38F
5.7 F6F
5.7 FM2
5.7 110C4
5.8 Ki84
5.8 SBD5
5.9 P40E
6.0 109E4
6.0 SpitV
6.0 P38J
6.0 P38L
6.0 TBF
6.1 P39D
6.2 110G2R3
6.2 SpitIX
6.4 F4U
6.4 109F4
6.6 P51D
6.8 109G6
7.1 B25J
7.3 109K4
7.3 Ju88A4
7.5 109G6R6
7.6 P47D
7.8 190A4
8.1 190D9
8.2 190A8
8.2 B25H
9.0 B17G
4.7 A6M2
4.7 D3A2
4.8 Ki43
5.1 A6M3
5.2 B5N2
5.3 SpitIa
5.3 HurriI
5.4 A6M5
5.5 F4F
5.6 FM2
5.9 HurriIIc
6.0 Ki84
6.0 110C4
6.1 P38F
6.1 SBD5
6.2 SpitV
6.3 F6F
6.3 P38J
6.3 P39D
6.3 P40E
6.4 109E4
6.6 109F4
6.6 SpitIX
6.6 P38L
6.7 F4U
6.7 110G2R3
6.9 TBF
7.2 109G6
7.3 P51D
7.3 B25J
7.7 P47D
7.9 Ju88A4
8.0 109K4
8.2 190A4
8.3 B17G
8.4 B25H
8.5 109G6R6
8.6 190A8
9.2 109D9
5.1 A6M2
5.1 A6M3
5.2 Ki43
5.4 A6M5
5.5 D3A2
5.7 B5N2
5.8 F4F
6.0 SpitIa
6.2 FM2
6.2 HurriI
6.3 P38F
6.4 SBD5
6.5 P40E
6.6 SpitV
6.7 109E4
6.7 HurriIIc
6.8 F6F
6.8 110C4
6.9 Ki84
7.0 P38J
7.2 SpitIX
7.2 P39D
7.3 F4U
7.3 P38L
7.4 109F4
7.4 110G2R3
7.4 TBF
7.7 109G6
8.0 P51D
8.0 B25J
8.2 Ju88A4
8.6 P47D
8.8 B17G
9.0 109K4
9.1 B25H
9.2 109G6R6
9.2 190A8
9.5 190A4
10.1 190D9
5.5 D3A2
5.7 A6M3
5.8 A6M2
5.8 Ki43
5.9 A6M5
6.1 B5N2
6.3 F4F
6.4 HurriI
6.8 SpitIa
6.9 FM2
6.9 P38F
7.1 109E4
7.1 SpitV
7.1 P40E
7.4 F6F
7.4 HurriIIc
7.4 SBD5
7.5 P38L
7.6 109F4
7.6 110C4
7.6 P38J
7.7 F4U
7.7 Ki84
7.9 P39D
7.9 TBF
8.0 SpitIX
8.2 110G2R3
8.3 B25J
8.5 Ju88A4
8.6 109G6
8.9 P47D
8.9 B17G
9.0 P51D
9.3 109K4
9.4 B25H
9.5 109G6R6
9.7 190A4
10.5 190A8
10.5 190D9



Corner Velocity Maximum G Turn, first 360 degrees times, sorted from best to worst

  1,000ft 5,000ft 10,000ft 15,000ft
#1
#2
#3
#4
#5
#6
#7
#8
#9
#10
#11
#12
#13
#14
#15
#16
#17
#18
#19
#20
#21
#22
#23
#24
#25
#26
#27
#28
#29
#30
#31
#32
#33
#34
#35
#36
#37
#38
#39
9.7 Ki43
9.7 B5N2
9.9 A6M2
10.1 D3A2
10.4 A6M3
10.8 HurriI
11.2 A6M5
11.3 SpitIa
12.0 P38F
12.1 F4F
12.1 HurriIIc
12.2 FM2
12.3 110C4
12.6 F6F
12.7 P38J
12.8 P40E
13.1 Ki84
13.1 SpitV
13.1 P38L
13.3 SBD5
13.5 P39D
13.8 109E4
13.8 110G2R3
13.8 SpitIX
14.1 TBF
14.4 109F4
14.8 F4U
15.0 P51D
16.0 109G6
16.6 Ju88A4
16.7 P47D
16.8 B25J
17.1 109K4
17.3 190A4
18.0 109G6R6
18.2 190D9
18.3 190A8
18.4 B17G
18.9 B25H
10.2 A6M2
10.3 Ki43
10.3 B5N2
11.0 D3A2
11.6 A6M3
11.8 SpitIa
11.9 A6M5
12.1 F4F
12.1 HurriI
12.2 FM2
12.6 F6F
13.3 HurriIIc
13.3 P38F
13.4 110C4
13.4 P38J
13.6 SpitV
13.6 P40E
13.7 P39D
13.9 P38L
14.1 Ki84
14.2 SBD5
14.6 SpitIX
14.8 F4U
15.4 109E4
15.5 109F4
15.6 110G2R3
16.2 P51D
16.6 TBF
17.1 P47D
17.1 B25J
17.4 109G6
17.9 B17G
18.0 Ju88A4
18.1 190A4
18.9 109K4
19.3 109G6R6
19.3 B25H
19.7 190A8
20.3 190D9
11.4 B5N2
11.5 Ki43
11.7 A6M2
12.0 A6M3
12.4 D3A2
13.1 A6M5
13.2 SpitIa
13.3 F4F
13.3 HurriI
13.9 FM2
14.3 P38F
14.3 P40E
14.8 SpitV
14.8 HurriIIc
14.8 P38J
15.1 110C4
15.2 F6F
15.2 P38L
15.6 SBD5
15.8 109E4
15.9 Ki84
16.0 P39D
16.2 SpitIX
17.1 110G2R3
17.2 109F4
17.6 P51D
18.0 F4U
18.3 TBF
18.4 109G6
19.0 B25J
19.3 P47D
19.4 B17G
19.8 Ju88A4
20.7 190A4
20.9 B25H
21.1 109K4
22.0 109G6R6
22.1 190A8
22.6 190D9
12.4 B5N2
12.7 A6M2
12.9 Ki43
13.1 D3A2
13.7 A6M3
14.1 HurriI
14.5 A6M5
14.6 F4F
15.2 SpitIa
15.5 FM2
15.9 P38F
16.1 SpitV
16.1 P40E
16.4 HurriIIc
16.8 F6F
16.8 110C4
16.9 P38J
16.9 P38L
17.0 P39D
17.8 Ki84
17.8 109E4
17.9 SBD5
18.1 SpitIX
18.6 109F4
18.8 110G2R3
19.1 F4U
19.9 P51D
20.2 B17G
20.3 B25J
20.9 TBF
21.4 Ju88A4
21.8 109G6
21.8 P47D
22.3 190A4
22.7 109K4
23.0 109G6R6
23.7 B25H
24.1 190D9
24.3 190A8

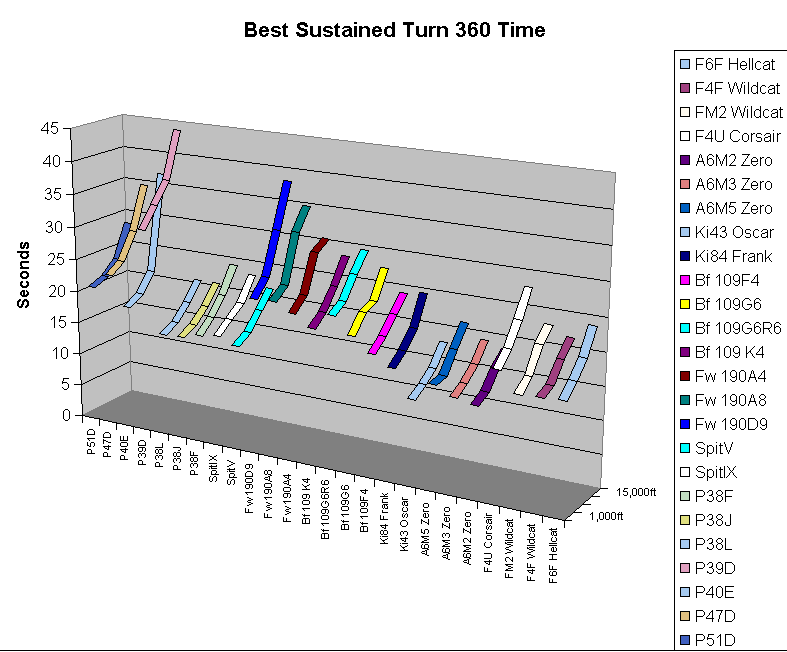

Sustained Turn Rate per plane type per altitude, no flaps/full for each altitude (time for 1 360 degree turn at max sustained turn rate speed)

  no flap 1,000ft 5,000ft 10,000ft 15,000ft   full flap 1,000ft 5,000ft 10,000ft 15,000ft
F6F 17.3s 18.5s 21.5s 24.0s   16.3s 18.1s 20.4s 24.0s
F4F 17.8s 18.0s 20.2s 21.8s   16.1s 16.9s 19.6s 23.8s
FM2 16.4s 17.6s 21.2s 23.1s   15.9s 18.3s 21.7s 24.9s
F4U 20.0s 22.8s 24.2s 28.0s   18.9s 21.0s 24.8s 29.4s
A6M2 13.2s 14.2s 16.7s 18.5s   13.5s 15.6s 17.3s 19.6s
A6M3 13.8s 14.9s 16.7s 19.3s   14.9s 14.9s 17.8s 20.1s
A6M5 15.1s 15.4s 18.4s 21.6s   15.1s 16.3s 19.5s 21.4s
Ki43 12.6s 13.6s 15.9s 18.9s   12.3s 13.6s 15.0s 18.0s
Ki84 17.4s 18.9s 21.7s 25.8s   16.4s 18.0s 20.4s 24.8s
Bf 109E4 18.0s 19.3s 21.2s 24.1s   19.0s 19.8s 21.7s 24.8s
Bf 109F4 18.8s 19.8s 22.0s 24.3s   17.9s 19.6s 22.1s 24.3s
Bf 109G6 20.9s 22.9s 24.1s 27.8s   20.0s 22.7s 23.4s 27.5s
Bf 109G6R6 22.8s 24.1s 27.4s 31.3s   22.5s 23.8s 27.0s 29.8s
Bf 109K4 20.6s 22.6s 25.9s 28.9s   20.1s 21.7s 24.7s 28.4s
Bf 110C4 17.7s 19.2s 20.8s 25.8s   18.3s 19.6s 22.0s 27.2s
Bf 110G2R3 20.4s 22.2s 25.2s 30.4s   21.2s 23.5s 25.6s 30.9s
Fw190A4 21.9s 23.7s 29.3s 30.6s   21.8s 23.8s 31.3s 31.3s
Fw190A8 23.3s 24.7s 31.9s 35.0s   23.1s 25.4s 33.7s 37.7s
Fw190D9 23.0s 25.5s 31.8s 38.4s   23.7s 25.7s 32.4s 40.0s
SpitIa 14.8s 16.0s 17.8s 20.8s   15.1s 16.4s 18.1s 21.8s
SpitV 15.3s 16.6s 19.1s 21.8s   16.0s 17.4s 19.1s 21.6s
SpitIX 16.3s 18.1s 19.7s 23.2s   16.9s 18.4s 20.4s 23.3s
HurriI 14.8s 16.4s 18.5s 22.1s   14.8s 16.6s 18.4s 22.2s
HurriIIc 16.3s 17.8s 21.6s 25.6s   16.6s 18.2s 21.9s 25.9s
P38F 16.6s 18.3s 21.0s 24.3s   15.9s 17.9s 20.5s 24.8s
P38J 15.8s 17.4s 19.3s 22.7s   15.1s 16.2s 18.3s 21.1s
P38L 16.9s 17.9s 19.8s 21.9s   15.0s 16.1s 18.4s 21.1s
P39D 18.0s 20.3s 22.2s 28.2s   18.5s 20.0s 22.9s 27.8s
P40E 18.3s 19.6s 22.4s 26.8s   18.9s 21.0s 23.1s 28.4s
P47D 24.7s 24.6s 29.9s 38.6s   22.9s 24.3s 28.3s 34.7s
P51D 20.5s 21.4s 23.3s 28.3s   21.6s 22.9s 26.1s 31.4s
D3A2 14.1s 15.1s 16.6s 19.7s   13.7s 15.1s 16.8s 19.9s
B5N2 13.9s 15.3s 16.5s 20.3s   14.1s 15.1s 16.3s 20.5s
SBD-5 20.1s 22.9s 24.4s 29.6s   20.0s 22.0s 26.3s 30.7s
Ju88A4 25.7s 28.8s 34.2s 40.2s   25.9s 29.7s 37.7s 41.2s
B25H 27.8s 33.3s 36.8s 44.6s   30.2s 35.4s 43.3s 53.7s
B25J 24.6s 26.6s 33.1s 38.4s   26.2s 28.6s 40.1s 48.1s
B17G 26.7s 27.6s 29.5s 35.7s   29.3s 30.7s 36.3s 37.7s
TBF 23.9s 29.6s 37.0s 49.2s   22.4s 28.1s 43.5s 87.1s



Sustained Turn Rate (best) sorted from best to worse for each altitude:

  1,000ft 5,000ft 10,000ft 15,000ft
#1
#2
#3
#4
#5
#6
#7
#8
#9
#10
#11
#12
#13
#14
#15
#16
#17
#18
#19
#20
#21
#22
#23
#24
#25
#26
#27
#28
#29
#30
#31
#32
#33
#34
#35
#36
#37
#38
#39
12.3 Ki43
13.2 A6M2
13.7 D3A2
13.8 A6M3
13.9 B5N2
14.8 SpitIa
14.8 HurriI
15.0 P38L
15.1 A6M5
15.1 P38J
15.3 SpitV
15.9 FM2
15.9 P38F
16.1 F4F
16.3 F6F
16.3 SpitIX
16.3 HurriIIc
16.4 Ki84
17.7 110C4
17.9 109F4
18.0 109E4
18.0 P39D
18.3 P40E
20.0 F4U
20.0 109G6
20.0 SBD-5
20.1 109K4
20.4 110G2R3
20.5 P51D
21.8 190A4
22.4 TBF
22.5 109G6R6
22.9 P47D
23.0 190D9
23.1 190A8
24.6 B25J
25.7 Ju88A4
26.7 B17G
27.8 B25H
13.6 Ki43
14.2 A6M2
14.9 A6M3
15.1 D3A2
15.1 B5N2
15.4 A6M5
16.0 SpitIa
16.1 P38L
16.2 P38J
16.4 HurriI
16.6 SpitV
16.9 F4F
17.6 FM2
17.8 HurriIIc
17.9 P38F
18.0 Ki84
18.1 F6F
18.1 SpitIX
19.2 110C4
19.3 109E4
19.6 109F4
19.6 P40E
20.0 P39D
21.0 F4U
21.4 P51D
21.7 109K4
22.0 SBD-5
22.2 110G2R3
22.7 109G6
23.7 190A4
23.8 109G6R6
24.3 P47D
24.7 190A8
25.5 190D9
26.6 B25J
27.6 B17G
28.1 TBF
28.8 Ju88A4
33.3 B25H
15.0 Ki43
16.5 B5N2
16.6 D3A2
16.7 A6M2
16.7 A6M3
17.8 SpitIa
18.3 P38J
18.4 A6M5
18.4 HurriI
18.4 P38L
19.1 SpitV
19.6 F4F
19.7 SpitIX
20.4 Ki84
20.4 F6F
20.5 P38F
20.8 110C4
21.2 FM2
21.2 109E4
21.6 HurriIIc
22.1 109F4
22.2 P39D
22.4 P40E
23.3 P51D
23.4 109G6
24.2 F4U
24.4 SBD-5
24.7 109K4
25.2 110G2R3
27.0 109G6R6
28.3 P47D
29.3 190A4
29.5 B17G
31.8 190D9
31.9 190A8
33.1 B25J
34.2 Ju88A4
36.8 B25H
37.0 TBF
18.0 Ki43
18.5 A6M2
19.3 A6M3
19.7 D3A2
20.3 B5N2
20.8 SpitIa
21.1 P38L
21.1 P38J
21.4 A6M5
21.6 SpitV
21.8 F4F
22.1 HurriI
23.1 FM2
23.2 SpitIX
24.0 F6F
24.1 109E4
24.3 109F4
24.3 P38F
24.8 Ki84
25.6 HurriIIc
25.8 110C4
26.8 P40E
27.5 109G6
27.8 P39D
28.0 F4U
28.3 P51D
28.4 109K4
29.6 SBD-5
29.8 109G6R6
30.4 110G2R3
30.6 190A4
34.7 P47D
35.0 190A8
35.7 B17G
38.4 190D9
38.4 B25J
40.2 Ju88A4
44.6 B25H
49.2 TBF

Note that turn rate is different than turn radius, and some planes with good turn rates have poorer turn radii compared to planes they outturn in rate (spit vs 109, spit vs p38l, 109G6R6 vs Fw190A4, etc). Turn radius is directly related to the turn rate and the square of the speed, so two planes with the same turn rate the one with the higher speed will have a larger radius than the plane with the lower speed. Consult Corner Velocity Times and Radii to compare turn rate and turn radii (sustained).

Graph:

Max-G 360 degree turn time (300mph) per plane type for each altitude

  1 360: 1,000ft 5,000ft 10,000ft 15,000ft   2 360s: 1,000ft 5,000ft 10,000ft 15,000ft
F6F 12.8s 14.3s 15.9s     28.4s 32.1s 35.9s
F4F
FM2 12.0s 12.3s 13.9s     25.9s 25.8s 31.1s
F4U 14.5s 15.3s 16.6s 18.9s   34.8s 36.6s 39.4s 48.6s
A6M2 11.2s 11.5s 12.5s     21.5s 23.2s 25.3s
A6M3 11.1s 12.2s 12.2s     21.8s 23.7s 27.1s
A6M5 11.5s 11.9s 12.5s     23.8s 25.4s 28.4s
Ki43 11.1s 12.4s 12.3s     21.6s 23.4s 25.0s
Ki84 12.5s 14.1s 15.5s 16.7s   29.0s 32.3s 36.4s 41.2s
Bf 109E4 12.9s 13.4s 15.4s     29.4s 31.2s 35.0s
Bf 109F4 12.7s 13.7s 15.4s     29.6s 32.5s 35.8s
Bf 109G6 14.9s 15.5s 16.9s     34.3s 37.5s 40.9s
Bf 109G6R6 16.0s 17.6s 18.7s     38.2s 40.3s 45.4s
Bf 109K4 15.5s 16.9s 18.6s 22.0s   35.6s 39.7s 43.4s 51.3s
Bf 110C4 13.7s 14.8s 16.0s     31.5s 34.4s 37.4s
Fw190A4 16.4s 17.1s 21.1s 21.0s   37.5s 38.3s 47.8s 49.0s
Fw190A8 18.0s 18.3s 21.8s     40.2s 41.6s 49.9s
Fw190D9 17.9s 20.2s 23.2s 25.0s   39.7s 44.2s 53.1s 62.4s
SpitIa 12.2s 13.5s 14.7s     24.9s 28.2s 30.3s
SpitV 12.2s 12.8s 14.6s     26.2s 28.3s 31.0s
SpitIX 12.5s 12.9s 14.0s 16.0s   27.7s 28.9s 32.3s 36.7s
HurriI 12.1s 12.4s 13.6s     24.2s 25.3s 30.0s
HurriIIc 11.9s 13.7s 14.7s     26.7s 31.1s 33.6s
P38F 12.7s 12.7s 13.9s 15.4s   27.4s 28.3s 31.8s 35.5s
P38J 12.1s 13.3s 14.8s 15.6s   26.9s 28.7s 32.9s 35.9s
P38L 12.7s 13.6s 14.9s 16.3s   27.6s 30.6s 33.4s 36.8s
P39D 12.5s 14.8s 16.6s     29.4s 33.9s 37.6s
P40E 12.2s 13.4s 14.8s     27.2s 30.0s 33.1s
P47D 17.1s 17.7s 19.4s 21.6s   38.9s 41.4s 48.5s 55.1s
P51D 14.4s 16.0s 16.9s 18.8s   33.7s 36.9s 39.6s 46.1s
D3A2 11.6s 12.1s 13.4s     23.6s 25.3s 27.6s
B5N2
SBD-5 12.7s 14.0s 14.8s     31.7s 34.6s 38.0s -
Ju88A4 16.1s 17.4s 18.6s     38.4s 41.5s 46.3s
B25H 17.9s 18.6s 20.1s     43.3s 45.1s 53.3s
B25J 16.2s 17.5s 18.6s     39.0s 42.5s 48.6s
B17G
TBF

Max-G 360 degree turn time (250mph) per plane type for each altitude

  1 360: 1,000ft 5,000ft 10,000ft 15,000ft   2 360s: 1,000ft 5,000ft 10,000ft 15,000ft
F6F 13.1s 14.8s 16.1s 17.6s   29.3s 32.9s 36.0s 42.3s
F4F 12.0s 12.8s 14.3s     27.3s 30.3s 33.6s
FM2 11.9s 12.6s 13.1s     25.9s 28.4s 32.8s
F4U 15.2s 17.0s 19.0s 22.2s   35.7s 38.1s 43.7s 49.0s
A6M2 9.8s 10.4s 11.4s 12.5s   21.6s 22.7s 25.7s 28.8s
A6M3 10.0s 10.3s 11.7s 12.8s   22.5s 23.6s 27.0s 30.2s
A6M5 10.2s 10.9s 11.8s 12.7s   23.6s 25.4s 28.8s 31.6s
Ki43 9.3s 10.1s 10.8s 12.4s   21.1s 22.5s 25.4s 28.9s
Ki84 13.0s 14.3s 15.6s 18.8s   30.4s 32.0s 36.2s 45.2s
Bf 109E4 12.9s 13.7s 15.5s 16.7s   31.0s 32.4s 36.5s 41.2s
Bf 109F4 13.8s 15.0s 16.3s 18.8s   31.9s 34.4s 36.9s 42.1s
Bf 109G6 16.4s 17.9s 18.8s 20.4s   36.4s 40.0s 42.9s 46.8s
Bf 109G6R6 17.1s 18.7s 20.3s 22.9s   38.9s 43.5s 46.5s 53.0s
Bf 109K4 17.1s 18.2s 20.2s 23.0s   37.9s 39.9s 44.9s 51.2s
Bf 110C4 14.6s 15.6s 17.3s 18.7s   33.7s 35.3s 40.0s 45.3s
Fw190A4 17.8s 18.2s 21.7s 23.0s   38.0s 40.9s 48.5s 52.8s
Fw190A8 18.1s 19.1s 22.8s 26.0s   39.9s 43.0s 51.7s 59.8s
Fw190D9 19.4s 22.6s 26.8s 29.2s   41.4s 27.6s 58.0s 64.0s
SpitIa 10.8s 12.8s 13.4s 14.1s   24.4s 28.2s 29.9s 33.2s
SpitV 12.3s 12.8s 14.6s 15.5s   27.1s 28.6s 32.1s 35.7s
SpitIX 12.5s 13.5s 15.5s 16.6s   28.9s 30.8s 34.1s 38.1s
HurriI 10.2s 11.7s 12.9s 15.0s   23.6s 26.2s 28.5s 33.2s
HurriIIc 11.5s 12.7s 15.4s 17.1s   27.4s 30.4s 36.2s 40.5s
P38F 12.3s 13.3s 14.7s 16.6s   27.7s 30.2s 33.9s 39.1s
P38J 12.7s 13.7s 15.5s 16.7s   27.7s 30.2s 33.7s 38.2s
P38L 13.6s 13.0s 15.7s 18.1s   29.3s 31.0s 35.3s 38.9s
P39D 13.0s 15.1s 16.1s 18.1s   30.6s 34.5s 37.7s 44.4s
P40E 12.5s 13.2s 14.8s 16.1s   28.5s 31.0s 35.0s 39.6s
P47D 19.6s 19.4s 22.4s 25.6s   42.6s 44.1s 51.1s 57.9s
P51D 15.7s 18.2s 18.9s 21.9s   35.4s 38.5s 42.1s 49.4s
D3A2 11.0s 10.5s 12.2s 12.7s   23.5s 24.1s 27.1s 31.2s
B5N2 11.6s 11.5s 11.5s 12.8s   23.8s 24.4s 26.9s 30.2s
SBD-5 13.8s 14.6s 15.9s 18.3s   33.7s 35.2s 40.9s 48.0s
Ju88A4 18.1s 19.2s 20.8s 21.6s   41.7s 46.3s 52.4s 57.9s
B25H 19.4s 21.8s 22.7s 25.4s   45.3s 50.3s 57.6s 65.3s
B25J 18.2s 19.9s 21.0s 22.9s   42.2s 46.1s 51.8s 58.5s
B17G 16.9s 17.6s 18.8s 19.7s   41.2s 43.8s 47.6s 52.4s
TBF 14.5s 16.1s 18.1s 20.4s   36.7s 42.4s 51.1s 63.9s

Back To Main Page
